National Lab Catalopedia: The EPPi® Kryo Boxes system - Complex like the daily storing requirements !
The EPPi® Kryo Boxes system identifies itselfs by its consequent logical concept guided by practical use as a cascade of well varied heights and identical horizontal dimensions, so all diverse types of tubes and vials with various diameters and heights fit within one special type of box, but all boxes themselves fit into one closed storing concept. You don't reach not only a well secured, but also highly effective storing density by using optimated cooling volume- at least minimizing storing costs per used storing volume .
All boxes fit into a storing system, which can be orientated horizontal for fast, comfort and clearly arranged handling or vertical orientated for secure and effctive long term storing by loosing minimal temperature. Due to these two storing concepts you have also ability to change your storing location highly reliable and fast, always controlling your available freezing capacities.
Our Online Ordering system guides you after choosing your type of storing box to the recommended varities of carriers fitting to your choice of EPPi® box. Vice versa you'll be giuded to recommended EPPi® boxes fitting to your chosen carrier you want for your freezer.So it will be guarrantied that you allways receive a well fitting combination of EPPi® Box and corresponding carrier.
This overview page will explain the outfit and type of coding which is in use for our EPPi® Kryo Boxes system.
This key coding page you can also download here as PDF- file to print it for use in your personal planning guide.

The Manufacturing Height  ⇒ 1. No. after KE[ ] :

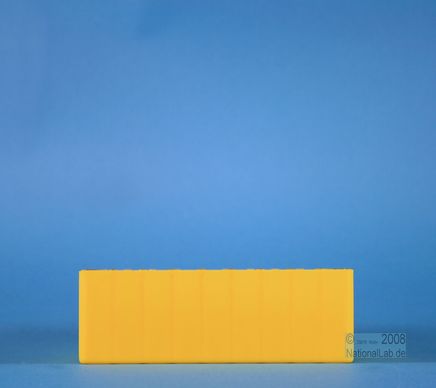

plastic-box EPPi® Box, 45mm, yellow

Primary H: 45 mm,
avail. Height
45 mm to 95 mm
Boxes with 1. No.:
45, 50, 75, 95 !

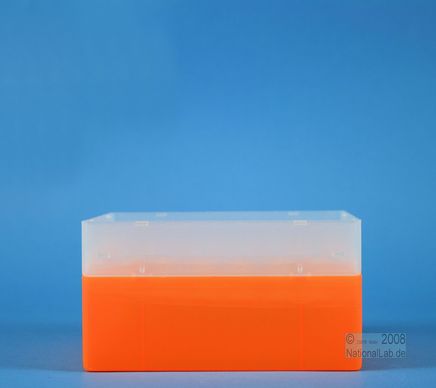

plastic-box EPPi® Box, 70mm, orange

Primary H: 70 mm,
avail. Height
70 mm to 121 mm
Boxes with 1. No.:
70, 80, 102, 121 !

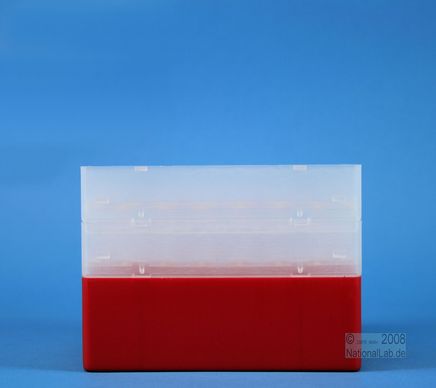

plastic-box EPPi® Box, 96mm, red

Primary H: 96 mm,
avail. Height
96 mm to 147 mm
Boxes with 1. No.:
96, 105, 128, 147 !

EPPi® Kryo Boxes

at 12 various combinations of heights
at 11 various combinations
of storing grids
mostly with 14 various
colours will reach nearly
all your kinds of
storing concepts !

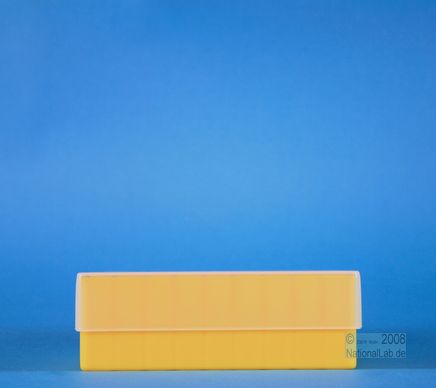

plastic-box EPPi® Box, 45mm, yellow, plain lying lid

Primary H: 45 mm, with a plain lying lid (V)
results a varity of
45 up to 53 mm.
Type code:
KE[Code]45-V[No]

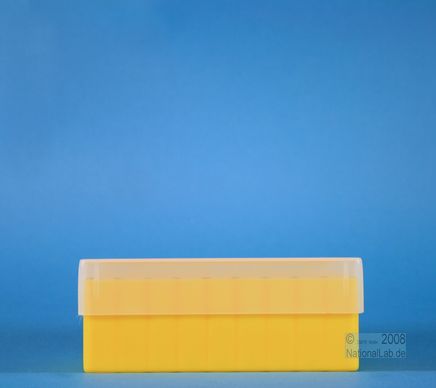

plastic-box EPPi® Box, 45mm, yellow, lid with height limiter for 50mm fixed height

Primary H: 45 mm,
lid (C) with height limiter
results a fixed height of
50 mm.
Type code:
KE[Code]50-C[No]

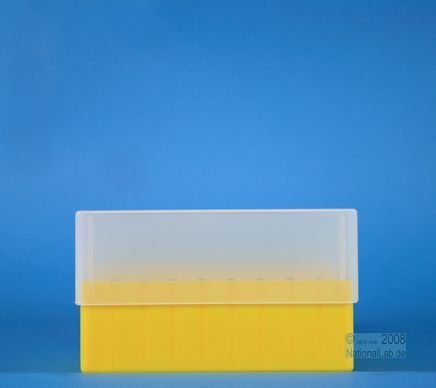

plastic-box EPPi® Box, 45mm, yellow, lid with height limiter for 75mm fixed height

Primary H: 45 mm,
lid (H) with height limiter
results a fixed height of
75 mm.
Type code:
KE[Code]75-C[No]

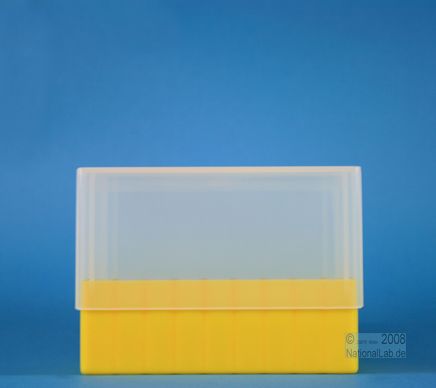

plastic-box EPPi® Box, 45mm, yellow, lid with height limiter for 95mm fixed height

Primary H: 45 mm,
lid (H+) with height limiter
results a fixed height of
95 mm.
Type code:
KE[Code]95-C[No]

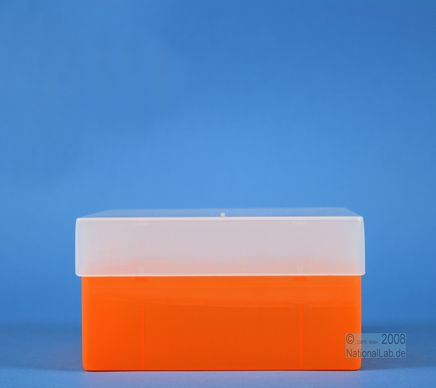

plastic-box EPPi® Box, 70mm, orange, plain lying lid

Primary H: 70 mm, with a plain lying lid (V)
results a varity of
70 up to 78 mm.
Type code:
KE[Code]70-V[No]

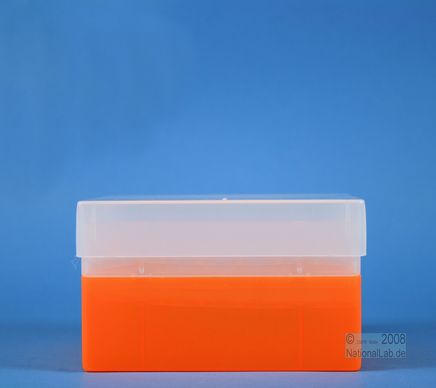

plastic-box EPPi® Box, 70mm, orange, lid with height limiter for 80mm fixed height

Primary H: 70 mm,
lid (C) with height limiter
results a fixed height of
80 mm.
Type code:
KE[Code]80-C[No]

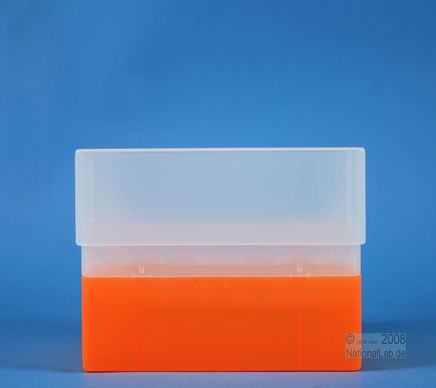

plastic-box EPPi® Box, 70mm, orange, lid with height limiter for 102mm fixed height

Primary H: 70 mm,
lid (H) with height limiter
results a fixed height of
102 mm.
Type code:
KE[Code]102-C[No]

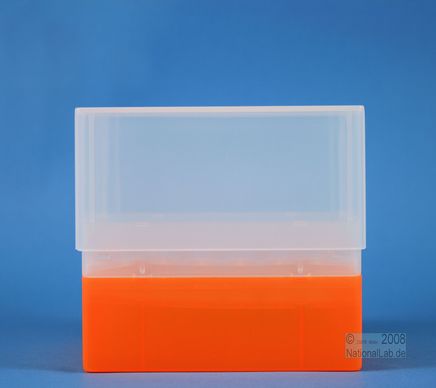

plastic-box EPPi® Box, 70mm, orange, lid with height limiter for 121mm fixed height

Primary H: 70 mm,
lid (H+) with height limiter
results a fixed height of
121 mm.
Type code:
KE[Code]121-C[No]

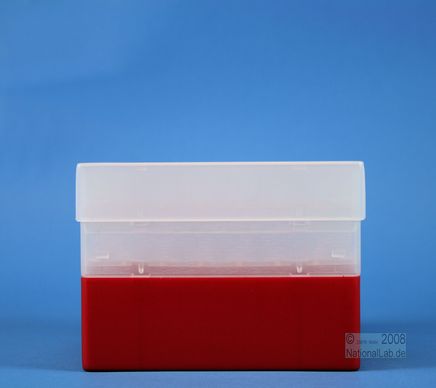

plastic-box EPPi® Box, 96mm, red, plain lying lid

Primary H: 96 mm, with a plain lying lid (V)
results a varity of
96 up to 114 mm.
Type code:
KE[Code]96-V[No]

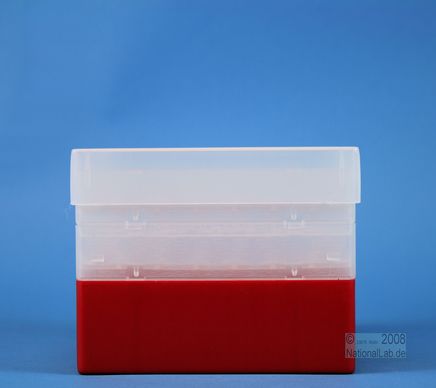

plastic-box EPPi® Box, 96mm, red, lid with height limiter for 105mm fixed height

Primary H: 96 mm,
lid (C) with height limiter
results a fixed height of
105 mm.
Type code:
KE[Code]105-C[No]

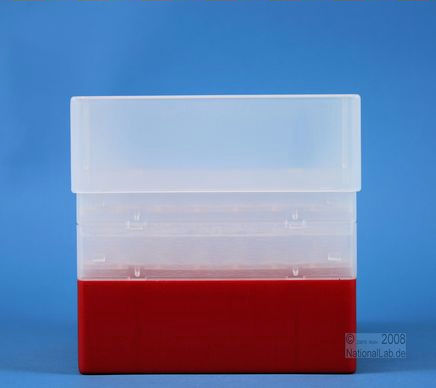

plastic-box EPPi® Box, 96mm, red, lid with height limiter for 128mm fixed height

Primary H: 96 mm,
lid (H) with height limiter
results a fixed height of
128 mm.
Type code:
KE[Code]128-C[No]

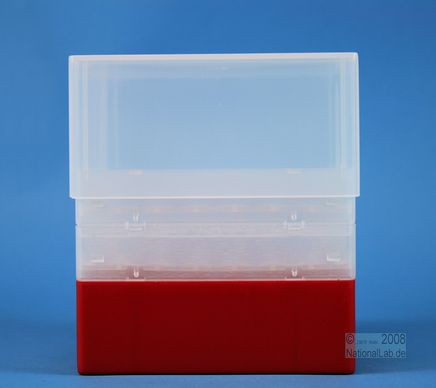

plastic-box EPPi® Box, 96mm, red, lid with height limiter for 147mm fixed height

Primary H: 96 mm,
lid (H+) with height limiter
results a fixed height of
147 mm.
Type code:
KE[Code]147-C[No]




The Storing variations  ⇒ 2. No. after -V or -C:

plastic-box EPPi® Box, 45mm, violet, plain lying lid, without grid

Box without any
built in grid,
( i. e. 45 mm, lid C ),
flexible in use with any
grid divider,added later.
Type code:
-V1 or -C1

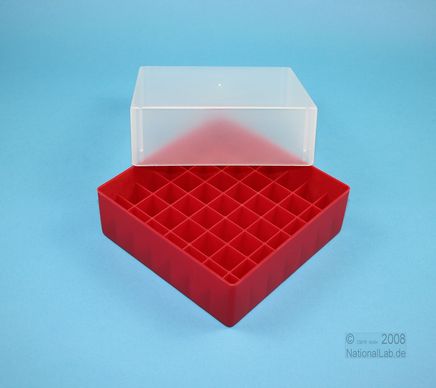

plastic-box EPPi® Box, 45mm, red,lid with height limiter for 102mm fixed height, fixed 7x7 grid

Box with 7 x 7 grid,
built in grid !
(i. e. 45 mm, lid H ),
for vials with
up to 16,5 mm ø
Type code:
-V49 or -C49

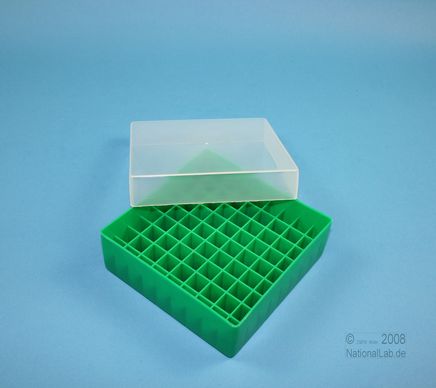

plastic-box EPPi® Box, 45mm, green, plain lying lid, fixed 9x9 grid

Box with 9 x 9 grid,
built in grid !
(i. e. 45 mm, lid V ),
for vials with
up to 12,5 mm ø
Type code:
-V81 or -C81

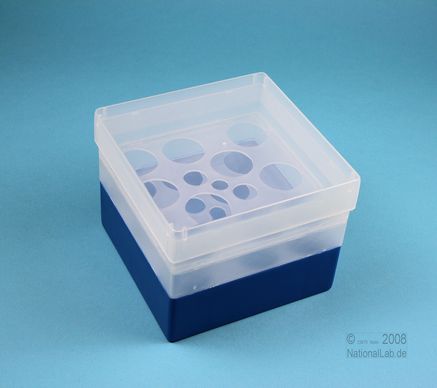

plastic-box EPPi® Box, 96mm, blue, lid with height limiter for 105mm fixed height, with 10 holes

Box with 10 wholes,
built in grid !
(i. e. 96 mm, lid C ),
for vials with
up to 30 mm ø
Type code:
-VO10 or -CO10

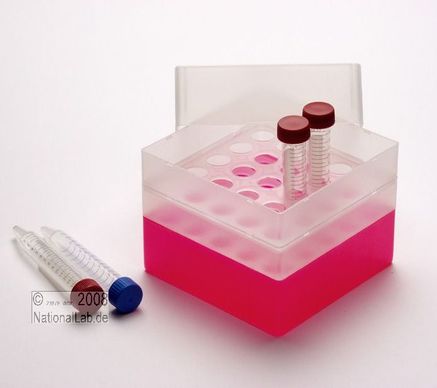

plastic-box EPPi® Box, 96mm, neon-pink, lid with height limiter for 128mm fixed height, 5x5 holes

Box with 5 x 5 wholes,
built in grid !
( i. e. 96 mm, lid H ),
for culture tubes
to 25 mm ø.
Type code:
-VO25 or -CO25

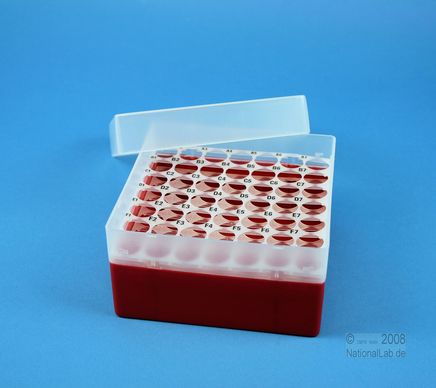

plastic-box EPPi® Box, 70mm, red, plain lying lid, with 7x7 holes, with numeric coding

Box with 7 x 7 wholes,
built in grid !
(i. e. 70 mm, lid V ),
for vials with
up to 16,5 mm ø
Type code:
-VO49 or -CO49

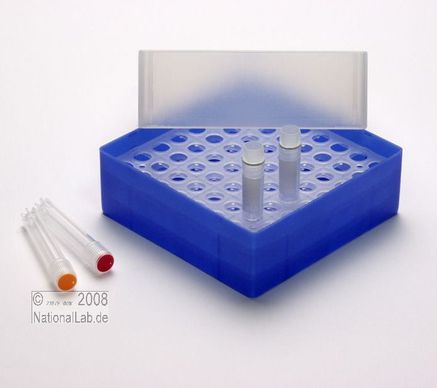

plastic-box EPPi® Box, 45mm, neon-blue, lid with height limiter for 75mm fixed height, with 8x8 holes

Box with 8 x 8 wholes,
built in grid !
(i. e. 45 mm, lid H ),
for vials with
up to 11 mm ø
Type code:
-VO64 or -CO64

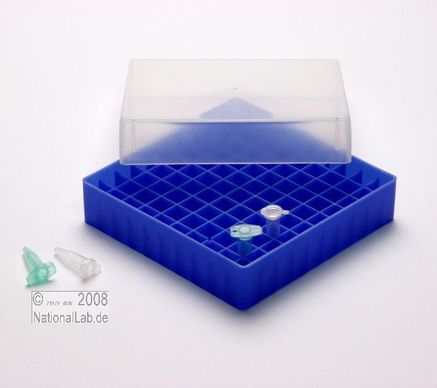

plastic-box EPPi® Box, 37mm, neon-blue, plain lying lid, fixed 10x10 grid

Box with 10 x 10 grid,
built in grid !
(i. e. 37 mm, lid C ),
for vials with
up to 10 mm ø
Type code:
-V100 or -C100




The Coding variations  ⇒ 3. letter after KE_ :

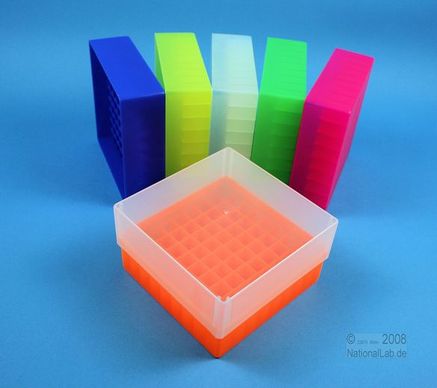

plastic-box EPPi® Box, 45mm, Neon- series, with fixed 9x9 grid, without coding

Box without any coding,
regardless the inner construction,
i. e. in a 75 mm variety,
lid (H), neon colour
Type code:
KEA

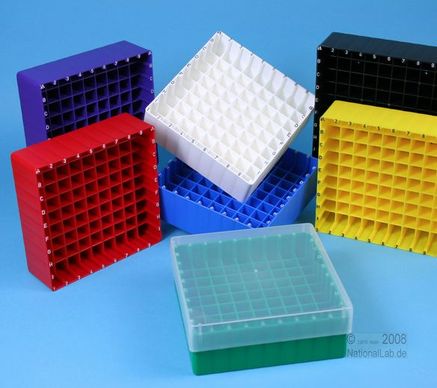

plastic-box EPPi® Box, 45mm, full color series, with fixed 9x9 grid, with alphanumeric coding on border

Alphanumeric coding,
only on the border,
i. e. in a 50 mm variety,
lid (C), full colour
Type code:
KEB

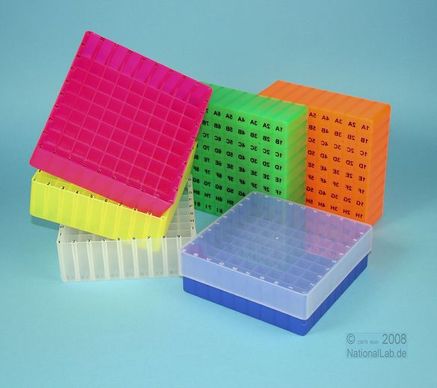

plastic-box EPPi® Box, 45mm, Neon- series, with fixed 9x9 grid, alphanumeric coding on border and bottom

Alphanumeric coding,
on bottom and border,
i. e. in a 45 mm variety,
lid (V), neon colour
Type code:
KEC

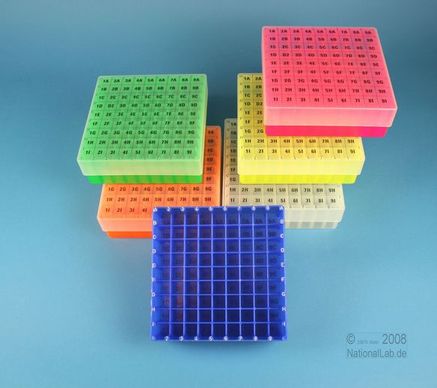

plastic-box EPPi® Box, 45mm, Neon- series, with fixed 9x9 grid, alphanumeric coding on border, lid and bottom

Alpha numeric coding,
on bottom, lid, border,
i. e. in a 45 mm variety,
lid (V), neon colour.
Type code:
KEE

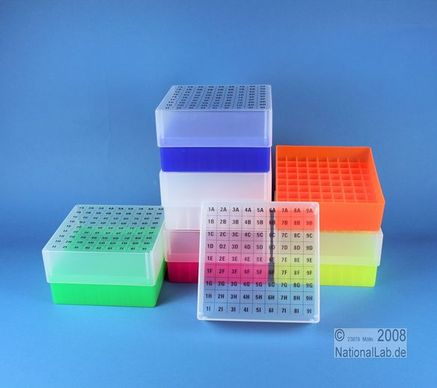

plastic-box EPPi® Box, 75mm, Neon- series, with fixed 9x9 grid, alphanumeric coding on lid

Alphanumeric coding,
only on the lid,
i. e. in a 75 mm variety,
lid (H), neon colour
Type code:
KEH

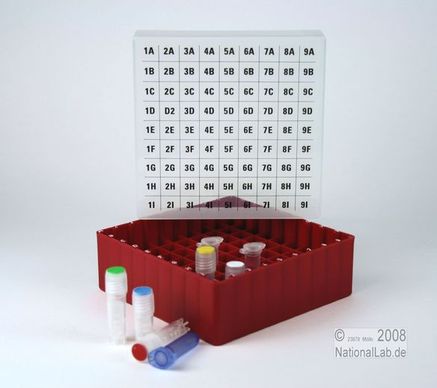

plastic-box EPPi® Box, 45mm, full color series, with fixed 9x9 grid, alphanumeric coding on border and lid

Alphanumeric coding,
on border and lid
i. e. in a 45 mm variety,
lid (V), full colour,
Type code:
KEK

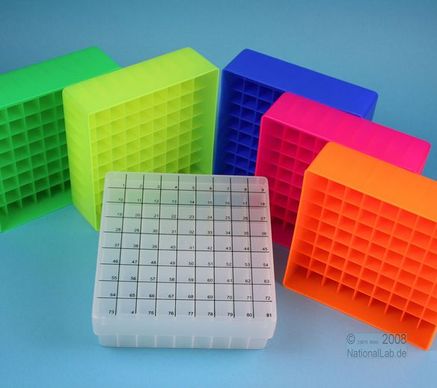

plastic-box EPPi® Box, 50mm, Neon- series, with fixed 9x9 grid, numeric coding on lid

Numeric coding,
only on the lid,
i. e. in a 50 mm variety
lid (C), neon colour
Type code:
KEM

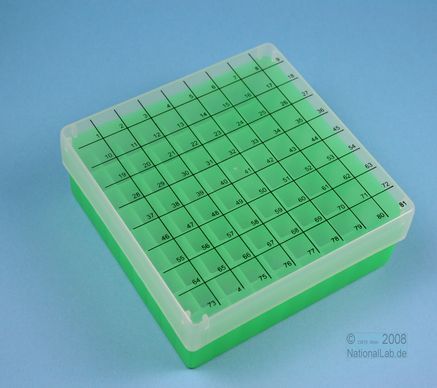

plastic-box EPPi® Box, 50mm, Neon- series, with fixed 9x9 grid, numeric coding on bottom and lid

Numeric coding,
on bottom and lid,
i. e. in a 50 mm variety
lid (C), neon colour
Type code:
KER




Shortend critera at a glance for a fast and secure choice:

Given: Parameters of your existing carrier system are given, your vials reach a height of in example 65mm .
Search for: Does the 136 mm length of our EPPi® Kryo Boxes Series fit into your carrier system,
also in chosen height ?
Our EPPi® Kryo Boxes system contains a fitting selection of
diverse Horizontal and Vertical Racks for many combinations of storing jobs.
Further goal: Because of the existing height of your vials of 65 mm,
the first No. of the complete Art.No. must be 65 or more.
And be careful: The diameter of your vials is fixing your choice of inner grid.
For example, 9x9 grid fits up to 12,5 mm ø , 7x7 grid fits up to 16,5 mm ø !

Of course you can ask us for details, further informations or planning aid !
